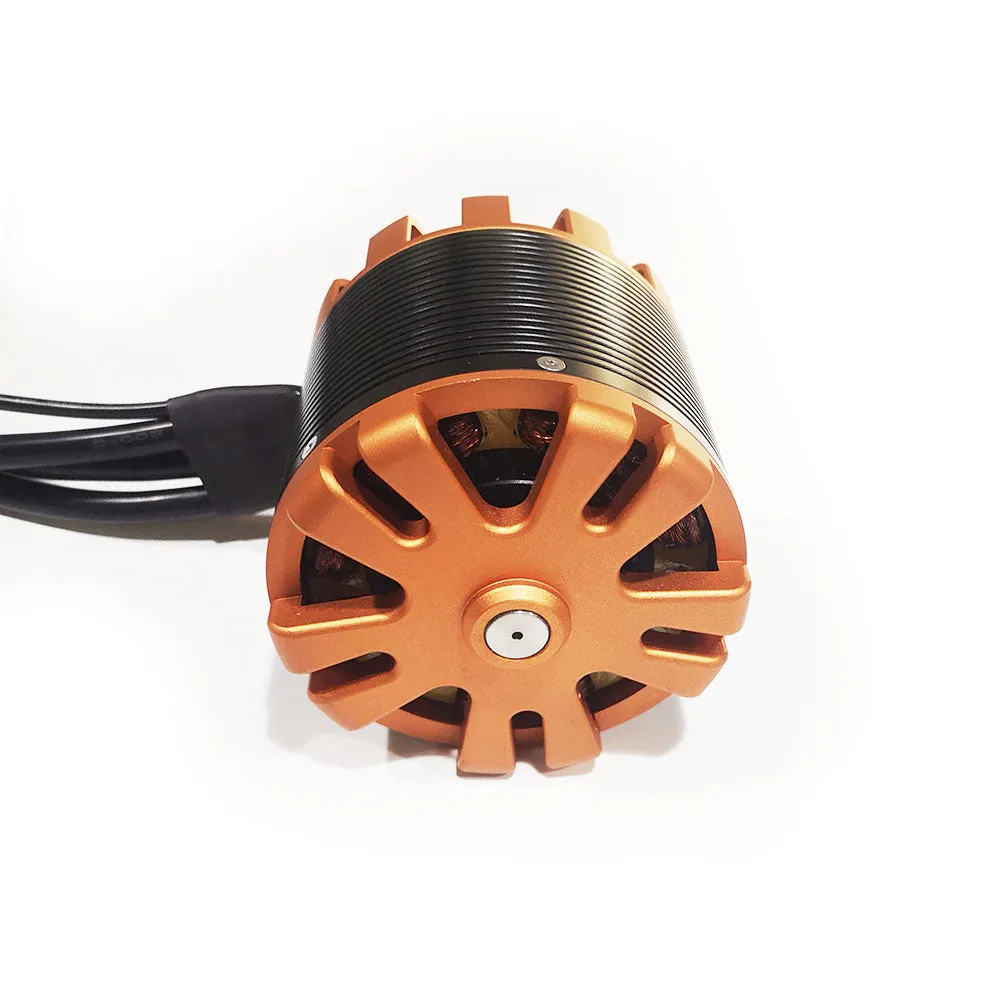

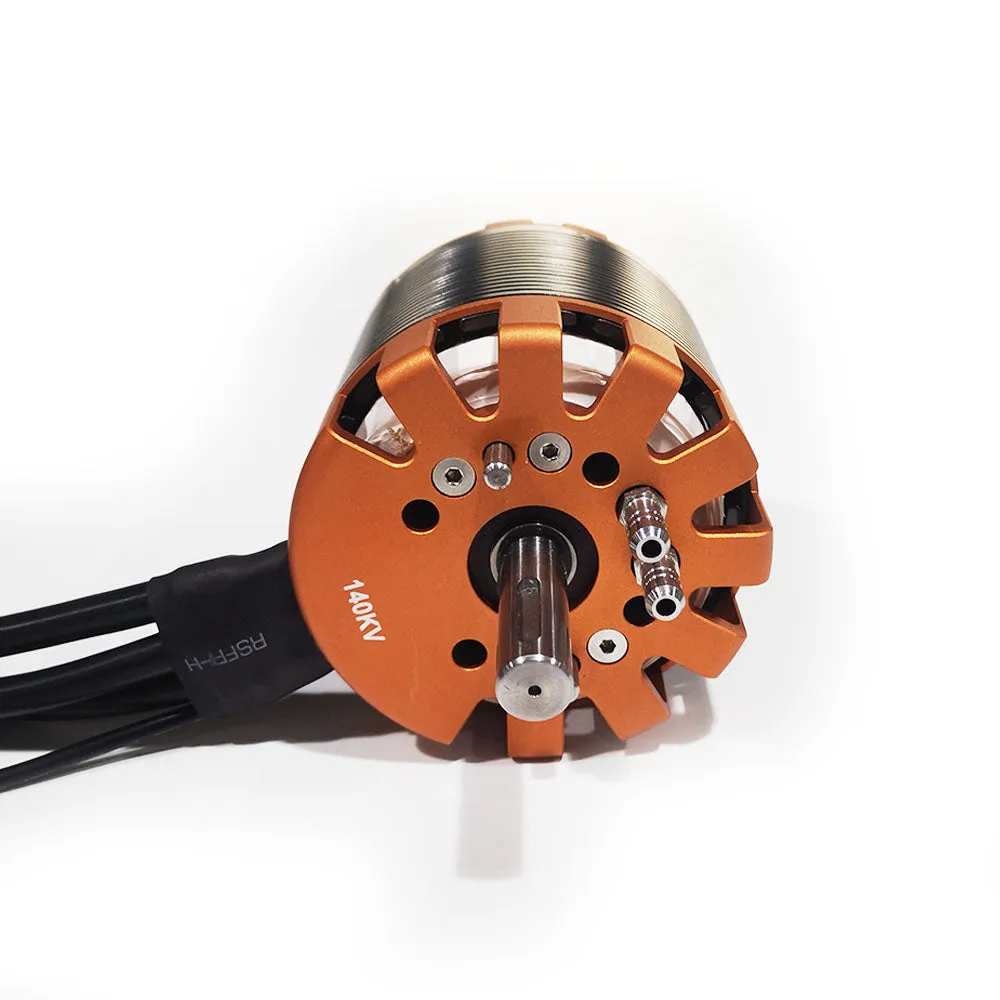

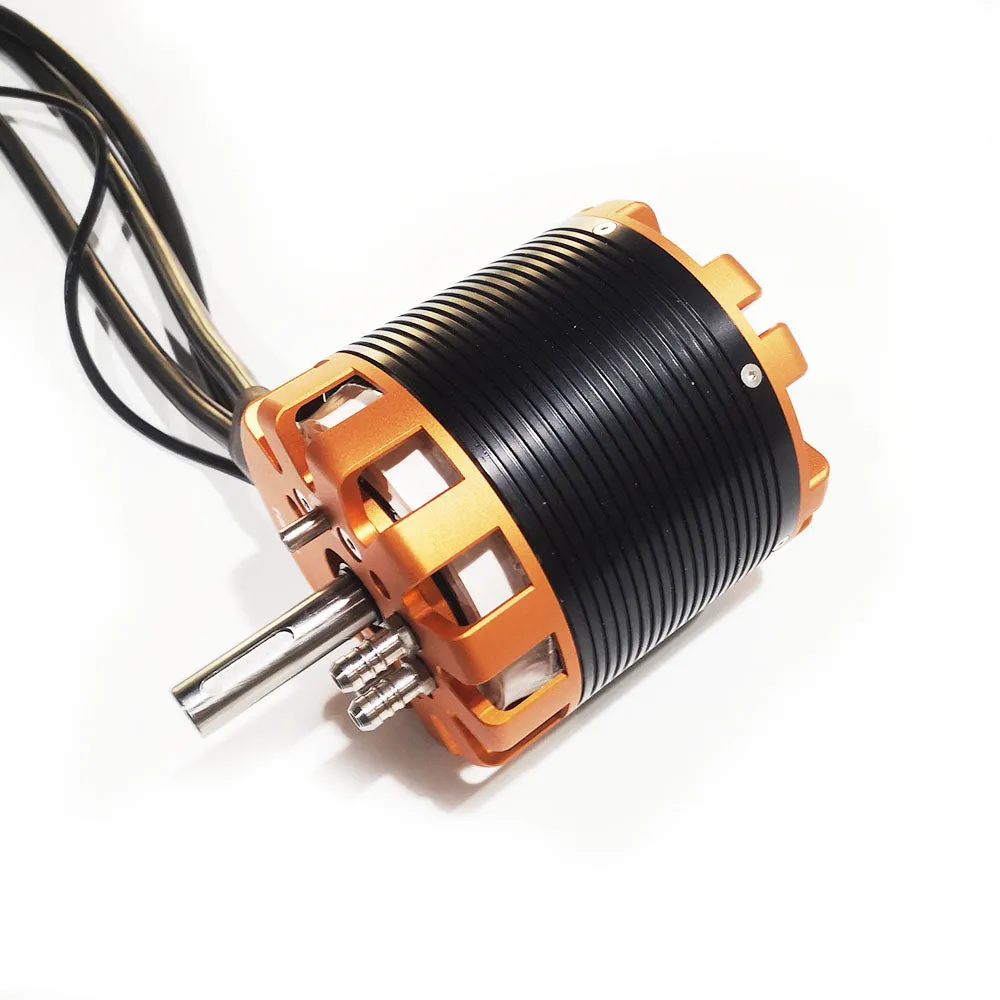

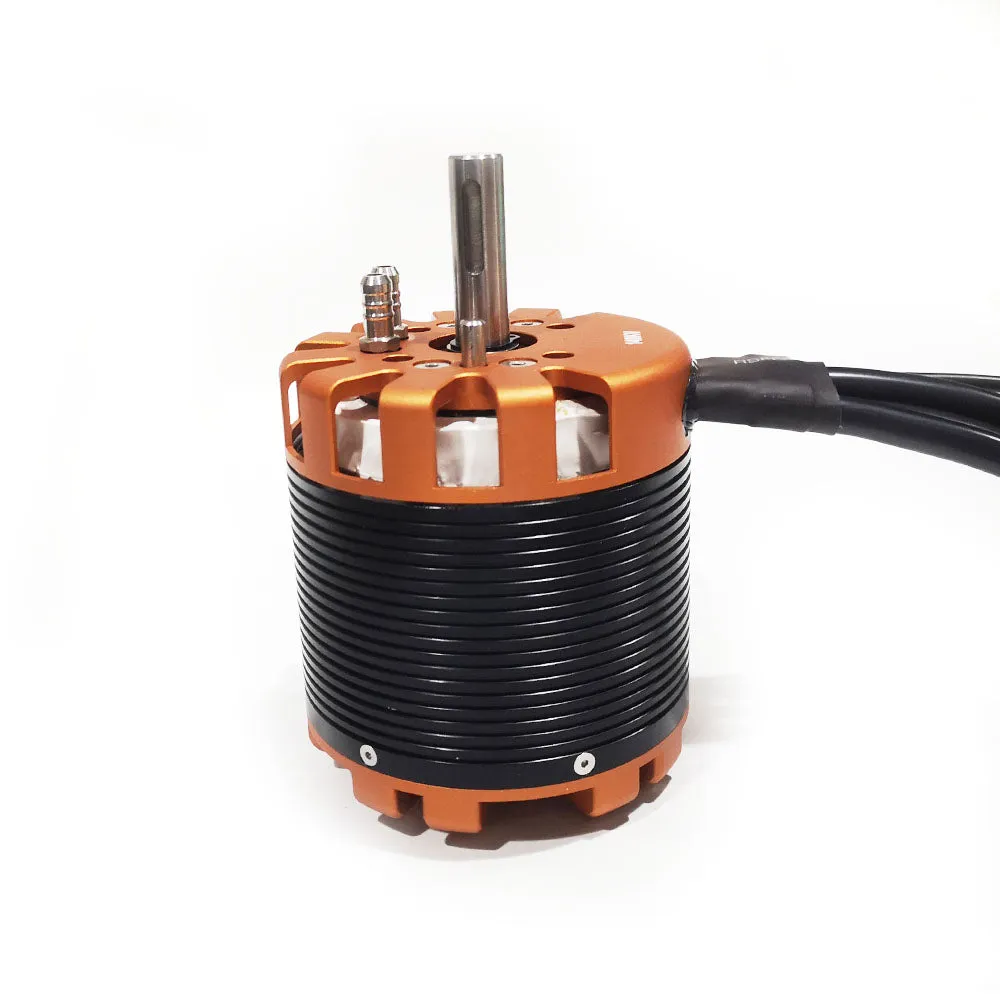

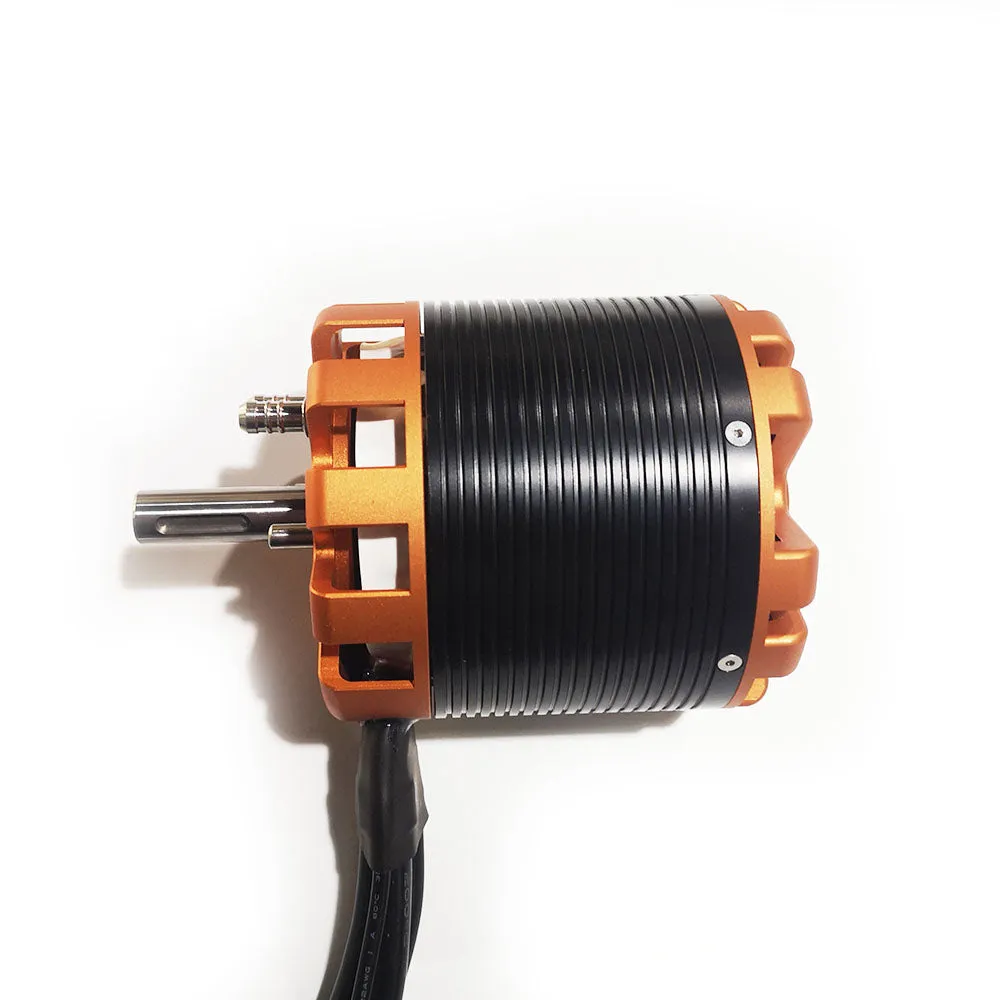

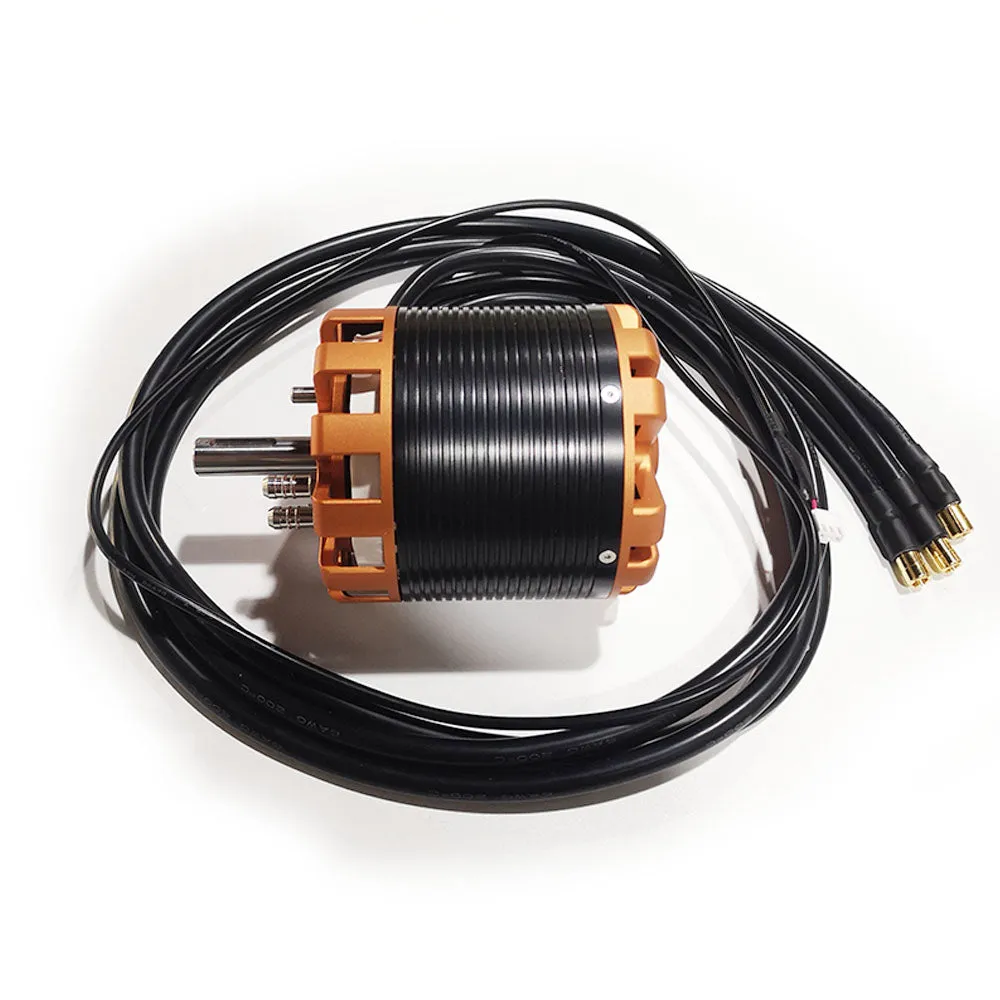

Maytech outrunner motor 9096 140KV 13.5KW brushless motor for 110KG robot weapon Electric Surfboard Jetboard Jetski
Features:Outrunner motor sensorless;
Battle-hardened Magnets;
Super slim silicon steel sheet 0.1mm, Low Resistance, High Efficiency.
Specially designed for fighting robots built-in weapon, electric motocycle, boat, elecctric surfboard, etc.
Model No | MTO9096-140-WC | Application | robotics, electric boat, electric surfboard, efoil, e-SUP, motocycle, e-bike, etc |
KV | 140 (other KV can be customized) | Max torque@60%)(N*M) | 19N.M. |
Size without motor covers | Φ90x60mm | Size with motor covers | Φ90x96mm |
Max Lipo Cell | 8-12s Lipo | Motor Weight | about 2.9kg |
Max Current | 350A | Max Power | 13.5KW |
Max pull | 19 N.m | Rated Power | 8.5KW |
Max Spin Speed)(RPM) | 9000 | @8.4V (Current @8.4V without Loading) (A) | 2.2A |
Effeciency | > 90% | Construction | 24N20P |
Max working temperature | 120°C | Insulation voltage & leak current | AC500V/10MA/3S |
Shaft extension | Can be customized (MOQ 20PCS) | Lead wires extension and connectors | Can be customized (MOQ 20PCS) |
